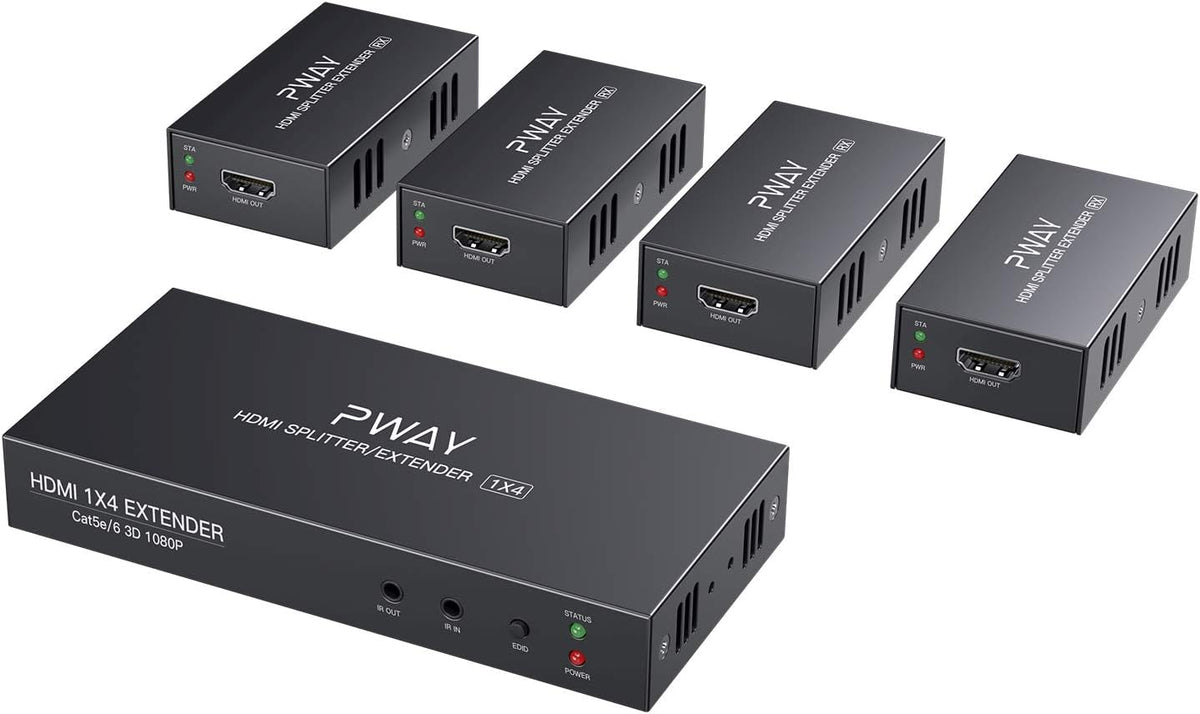

1x4 HDMI Extender Splitter 1080P Over Ethernet Cat6 C6322
1x4 HDMI Extender Splitter 1080P Over Ethernet Cat6 C6322
This HDMI splitter allows one video signal to 4 remote videos. Show 4 identical images at the same time.

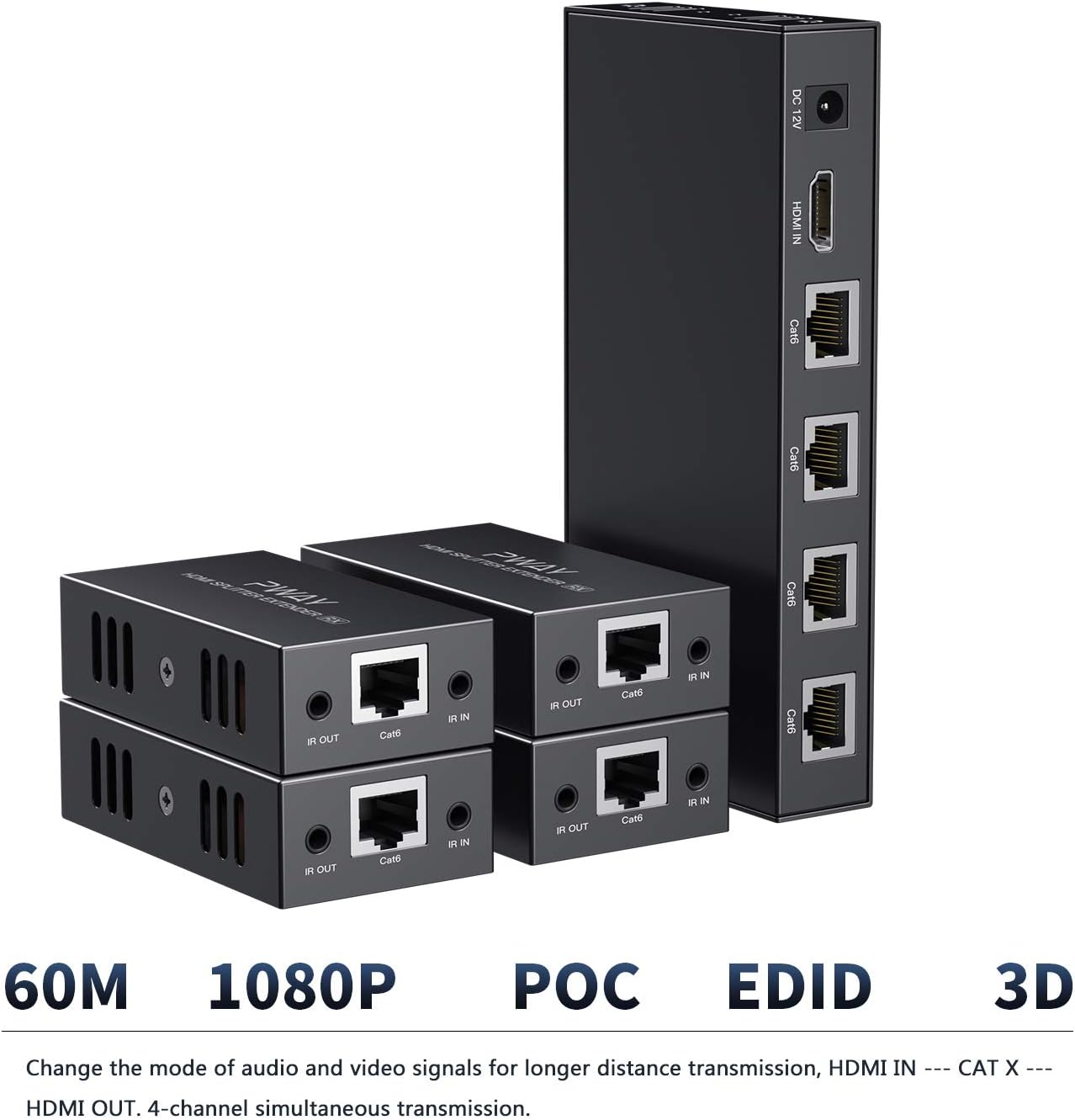

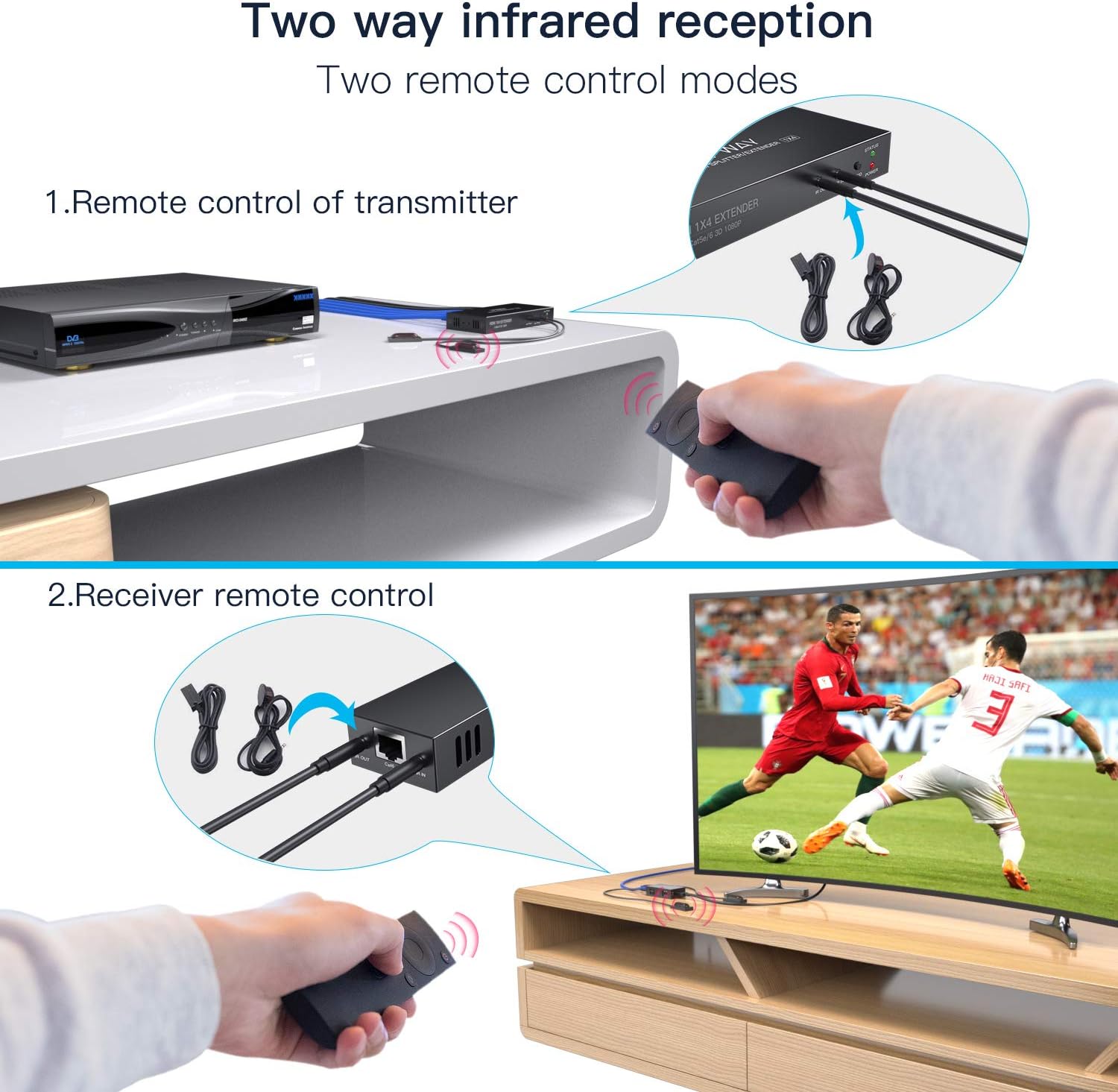

Splitter transmits signals over Ethernet cable. Cat5e---45m/131ft, Cat6/7---60m/---196ft. IR function supports remote commands to the signal source. Used to receive signals from the remote.

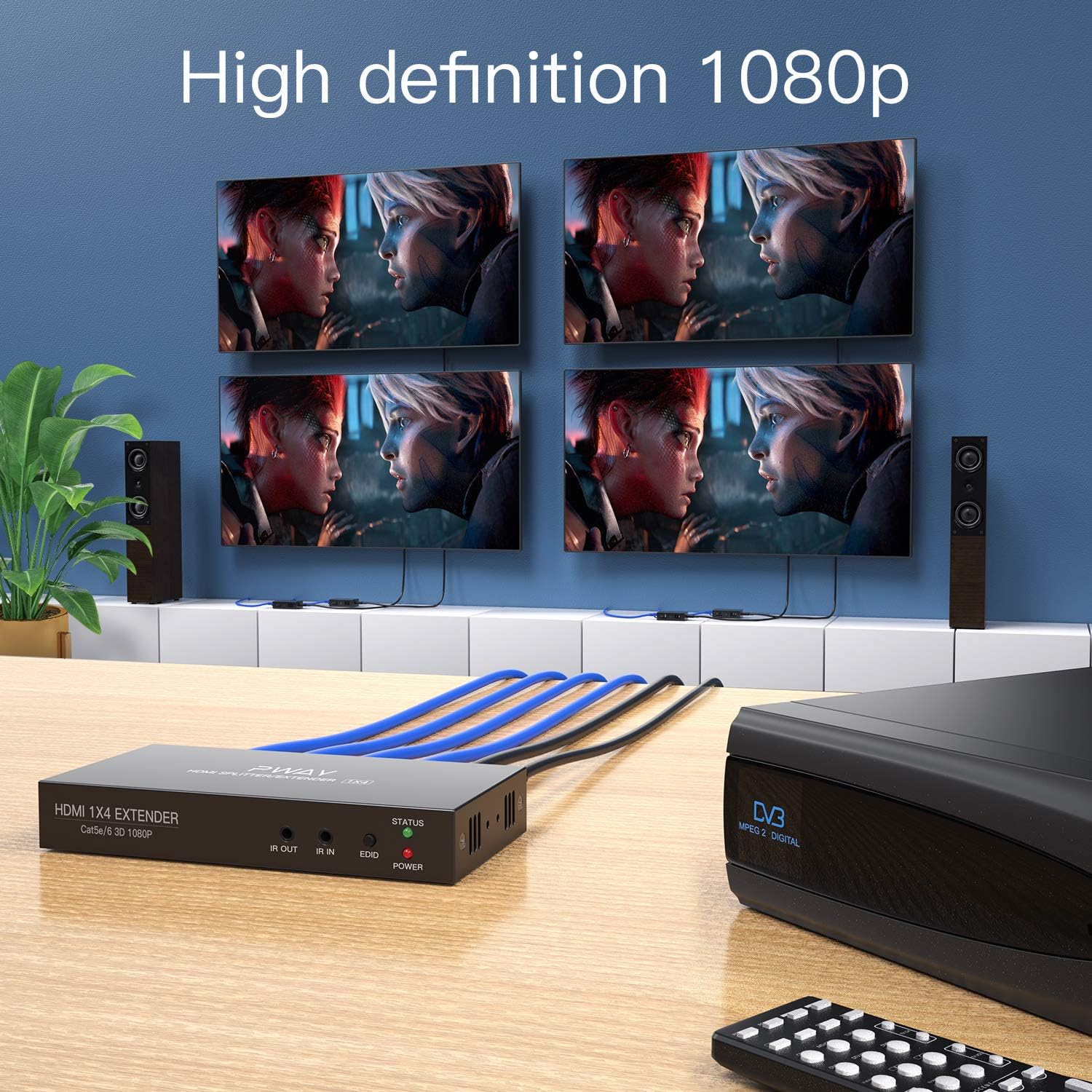

Support Ultra HD 1920*1080P@60Hz signal, backward compatible with 1080i/720p resolutions, and also compatible with 3D signal.

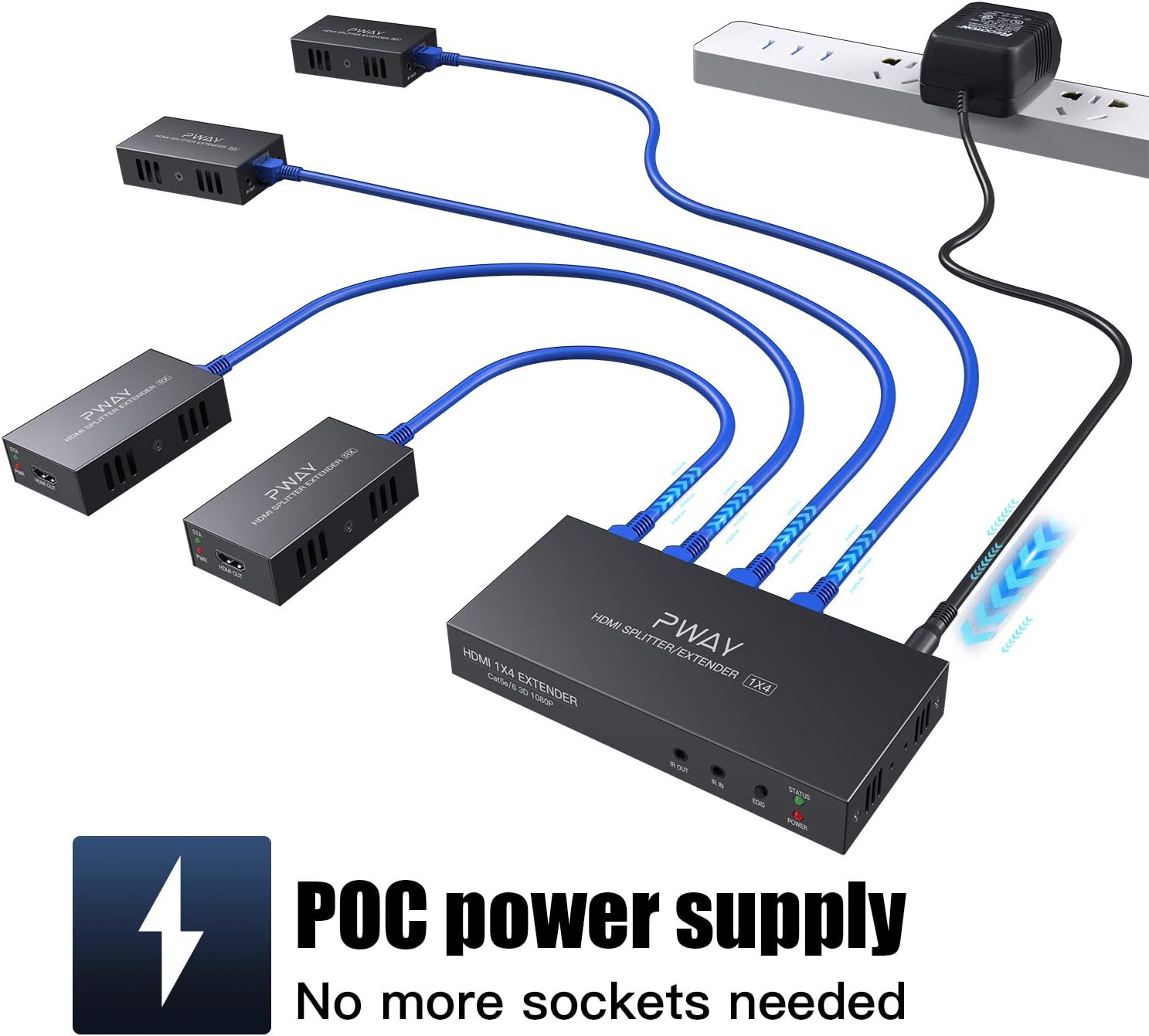

Simpler connection, Splitter starts up only through one power adapter, no more plugs needed on the receiver side.
Mainly used in engineering, security, exhibition, home audio&video, etc.
Working Principle

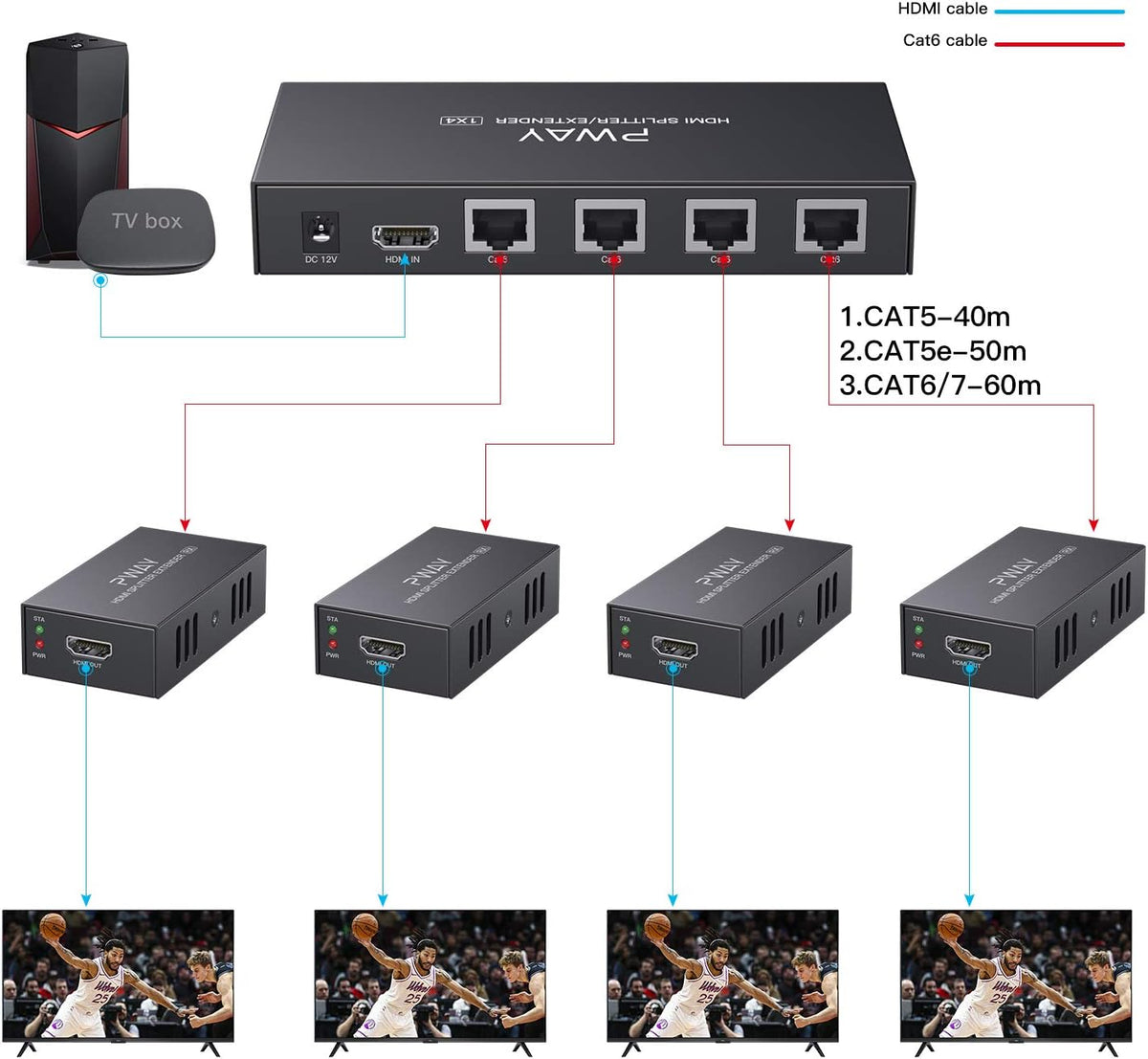

HDMI Extender/Splitter divides a signal into 4 same signals for remote transmission over Ethernet cables. You can get 4 same images on the TV/monitor/projector in the church, restaurant, and different rooms.
Specification
Support HDMI cable (1080P@60Hz): HDMI-A 1.3, within 15 feet.
Support Ethernet cable length: Cat5e---45m/131ft, Cat6/7---60m/---196ft.
Support RJ45 type: T568B, the cable sequence is 'white orange, orange, white green, blue, white blue, green, white brown, brown'.

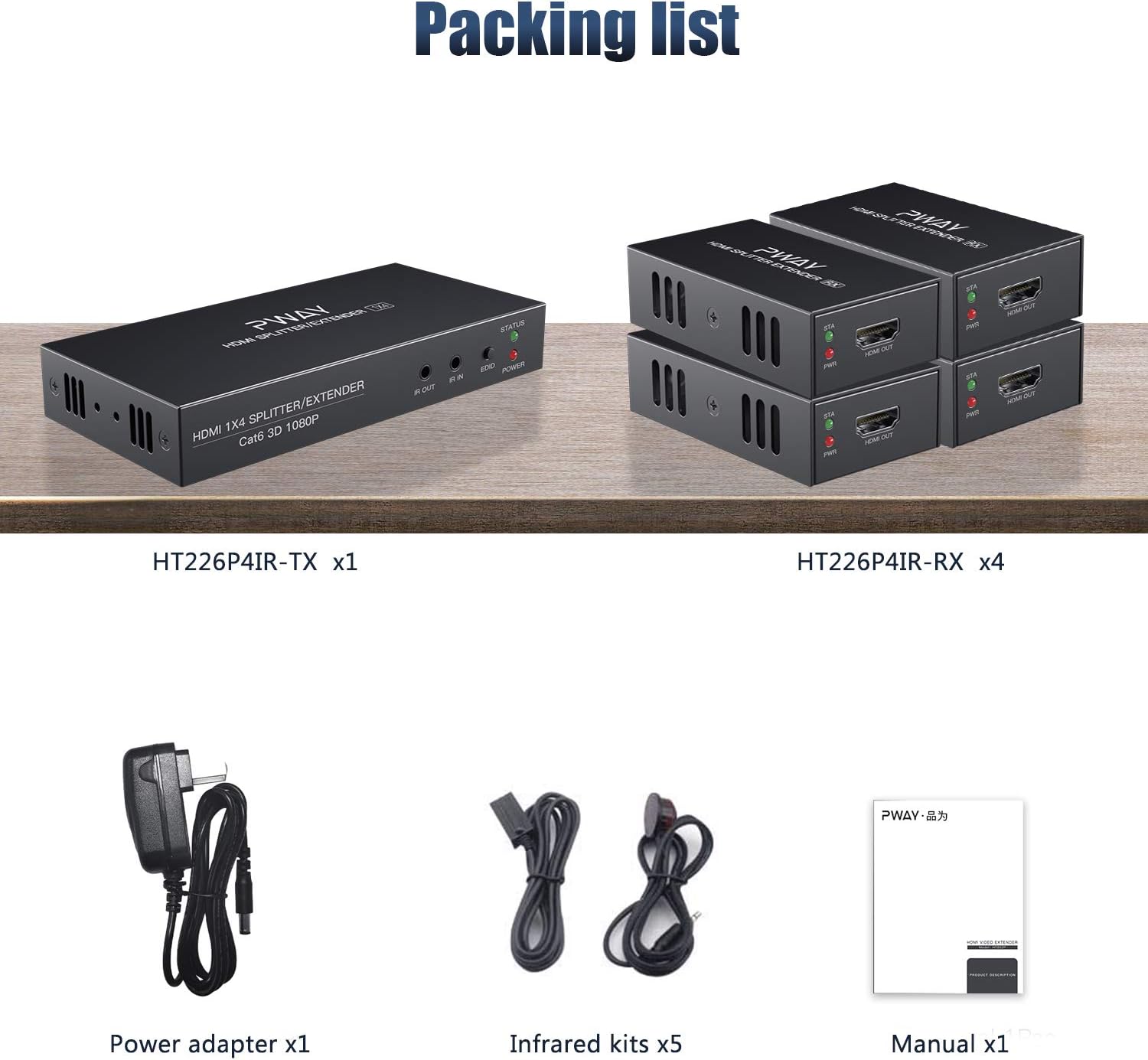

Packing List
1x HDMI transmitter
4x HDMI receiver
5x IR TX cable
5x IR RX cable
1x Power adapter
1x Manual
Reminder
1. Directly test your signal source and monitor with an HDMI cable before connecting HDMI Extender/Splitter.
2. If you have connected adapters such as Wall RJ45 adapter, VGA-to-HDMI converter, etc, please test HDMI Extender/Splitter first.
3. For any product problem, contact us please, we will give a solution within 24 hours.
