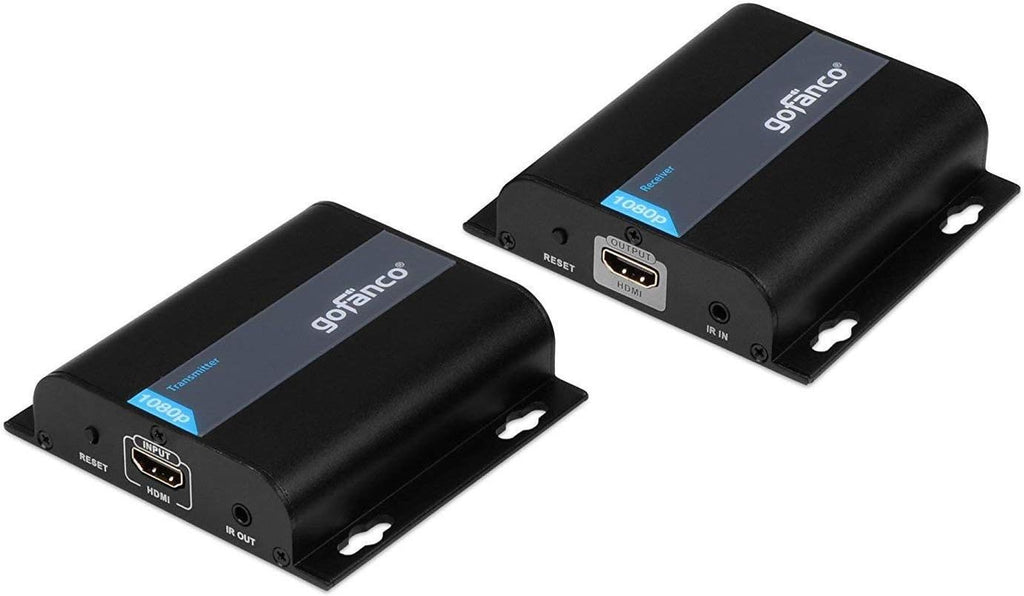

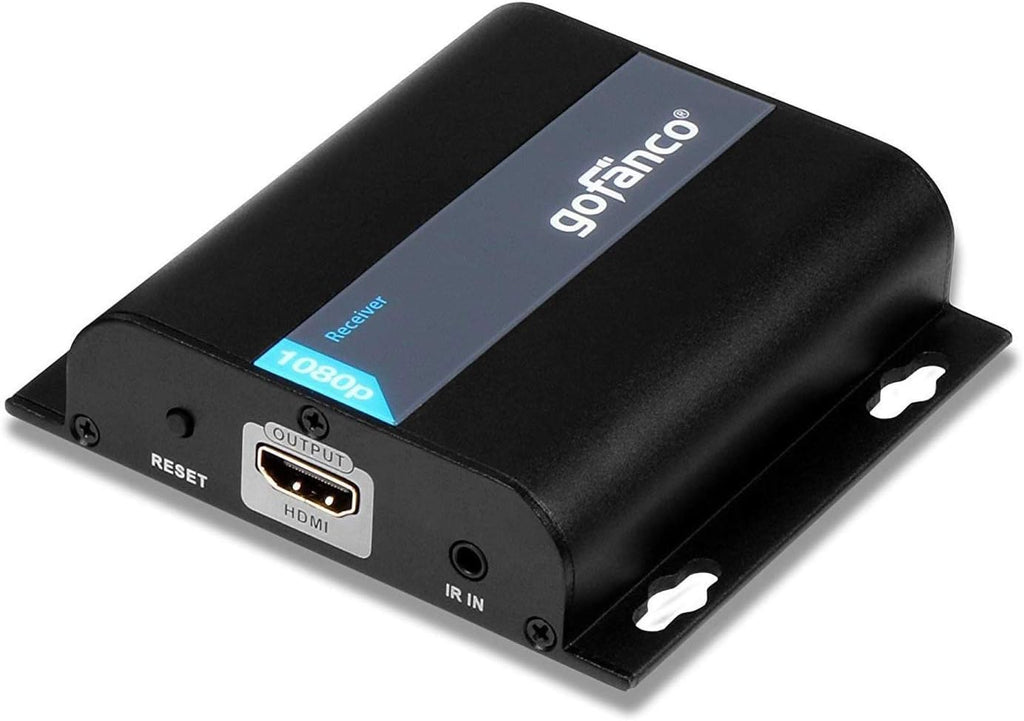

1080p HDMI Extender over CAT5e CAT6 Cable S92714
Sale price
$21.50
Regular price $71.34
Skip to product information
394FT HDMI ETHERNET EXTENDER – With a single CAT5e/6/7 cable, you can easily extend HDM signals up to 394ft. Direct 1-to-1 connection or 1-to-many through Gigabit network switches. Additional receivers (part# HDbitTv2-RX, version 2.0) are sold separately. *Important Note*: HDbitTv2 (this kit, version 2.0) is NOT backward compatible with the previous version and its receivers (RX)
NETWORK DISTRIBUTION – Each transmitter (TX) can connect up to 30 receivers (RX). 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups; Note that each VLAN can only accommodate 1 transmitter (TX); We recommend gofanco 24-port video Ethernet switch (EthSwitch24P-2, B085DD9GG4); Don't use with home routers
VIDEO RESOLUTIONS & AUDIO – Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video and audio experience; Supports 2-channel Stereo Audio; * Note: There’s a 250ms or less delay/latency due to data compression; Not recommended for real-time applications, such as PC gaming
IR EXTENSION – You can control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT cable
SIMPLE INSTALLATION – No software is required. Surface mountable metal housing provides durability and higher level of RF/EMI shielding; FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns
1080p HDMI Extender over CAT5e CAT6 Cable S92714
Sale price
$21.50
Regular price $71.34
Shipping calculated at checkout.
394FT HDMI ETHERNET EXTENDER – With a single CAT5e/6/7 cable, you can easily extend HDM signals up to 394ft. Direct 1-to-1 connection or 1-to-many through Gigabit network switches. Additional receivers (part# HDbitTv2-RX, version 2.0) are sold separately. *Important Note*: HDbitTv2 (this kit, version 2.0) is NOT backward compatible with the previous version and its receivers (RX)
NETWORK DISTRIBUTION – Each transmitter (TX) can connect up to 30 receivers (RX). 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups; Note that each VLAN can only accommodate 1 transmitter (TX); We recommend gofanco 24-port video Ethernet switch (EthSwitch24P-2, B085DD9GG4); Don't use with home routers
VIDEO RESOLUTIONS & AUDIO – Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video and audio experience; Supports 2-channel Stereo Audio; * Note: There’s a 250ms or less delay/latency due to data compression; Not recommended for real-time applications, such as PC gaming
IR EXTENSION – You can control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT cable
SIMPLE INSTALLATION – No software is required. Surface mountable metal housing provides durability and higher level of RF/EMI shielding; FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns
| HDbitTv2 | HDExtIP | HDbitT4Kv2 | HDbitTPRO | HDBitT4K22 | EthSwitch24P-2 | |
|---|---|---|---|---|---|---|
| Supported Resolution | 1080p @60Hz | 1080p @60Hz | 4K @60Hz | 1080p @60Hz | 4K @30Hz | |
| Transmission Range | 394 ft. (120m) | 394 ft. (120m) | 395ft (120m) | 395ft (120m) | 395ft (120m) | 328ft (100m) |
| TX to RX Combinations | Up to 30 receivers for every 1 transmitter | Up to 256 combined receivers and transmitters (limited to 100 TX's) | Up to 30 receivers for every 1 transmitter | Up to 30 receivers for every 1 transmitter | Up to 30 receivers for every 1 transmitter | |
| Compression | HDbitT | HDbitT (H.264) | HDbitT | HDbitT | HDbitT | |
| RS-232 | ||||||
| HDMI Local Output | ||||||
| One-to-One | ||||||
| One-to-Many | ||||||
| Many-to-Many | Only with Smart Ethernet Switch VLANs | Only with Smart Ethernet Switch VLANs | Only with Smart Ethernet Switch VLANs | Only with Smart Ethernet Switch VLANs | 24-Port Smart Ethernet Switch |
