4 Port Gigabit Passive PoE Injector with 48V 48W UL Power Supply, Pack of 2 D464165
4 Port Gigabit Passive PoE Injector with 48V 48W UL Power Supply, Pack of 2 D464165

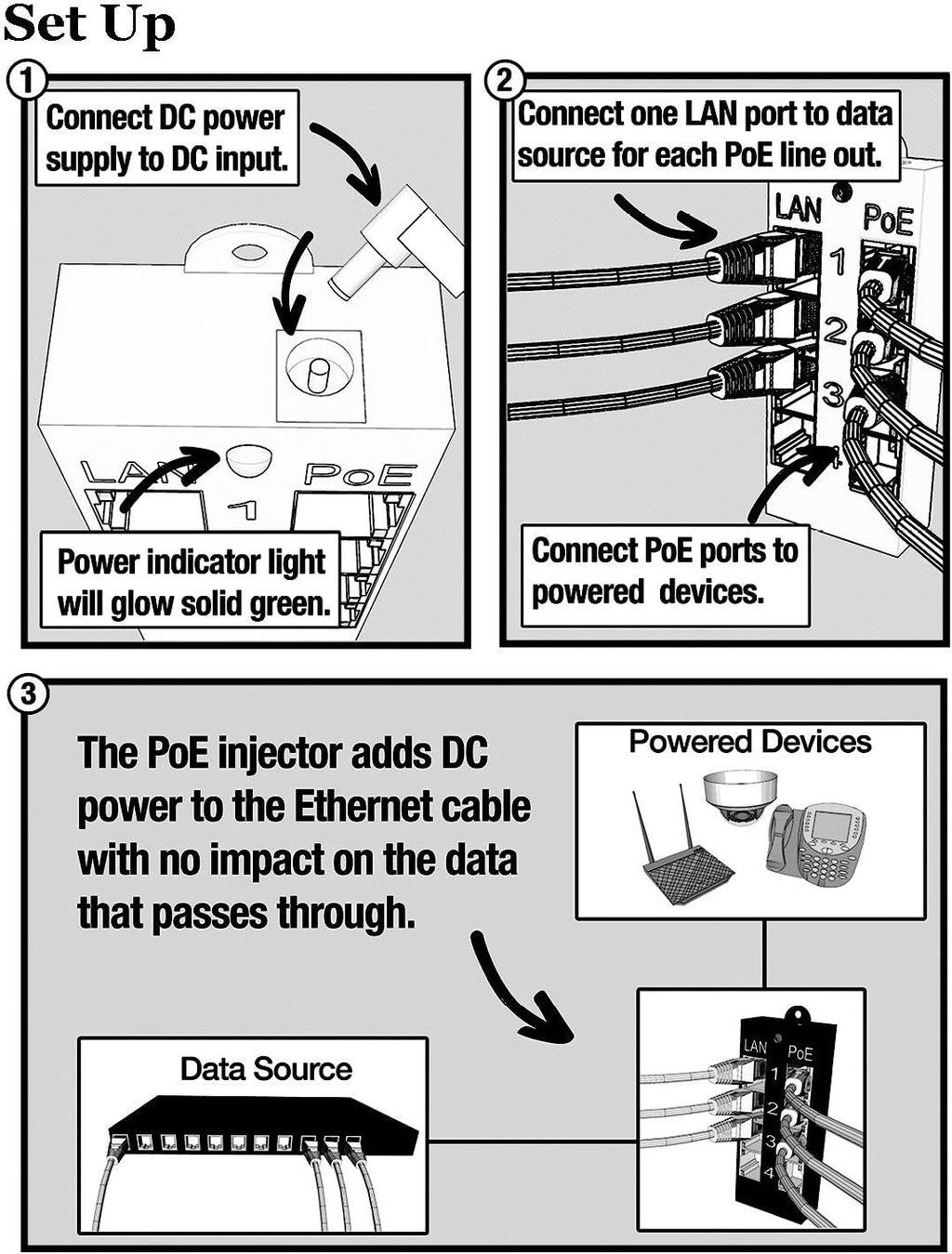

Add gigabit PoE to any Switch. This device combines power with data from your network switch or router on to the Ethernet cable via Mode A (pins 1,2 and 3,6). Passive feature enables all devices to receive the same voltage (48v) at all times. The available power for all devices combined is 48 watts. To calculate power budget, please check device specs for power needs.
Features Compatible with your 10/100/1000 Gigabit network switch or router 1:1 ratio for LAN to POE ports Supports up to 4 devices with 48 watts total power Use to power IEEE 802.3af devices (Or devices labeled "12v,PoE" ) Passive 48v power with up to 48 watts Shielded RJ45 ports - 4 data (LAN) in, 4 Data + Power (PoE) out Extend power up to 328 ft (100 meters) Passive "always on" 48v power on Mode A

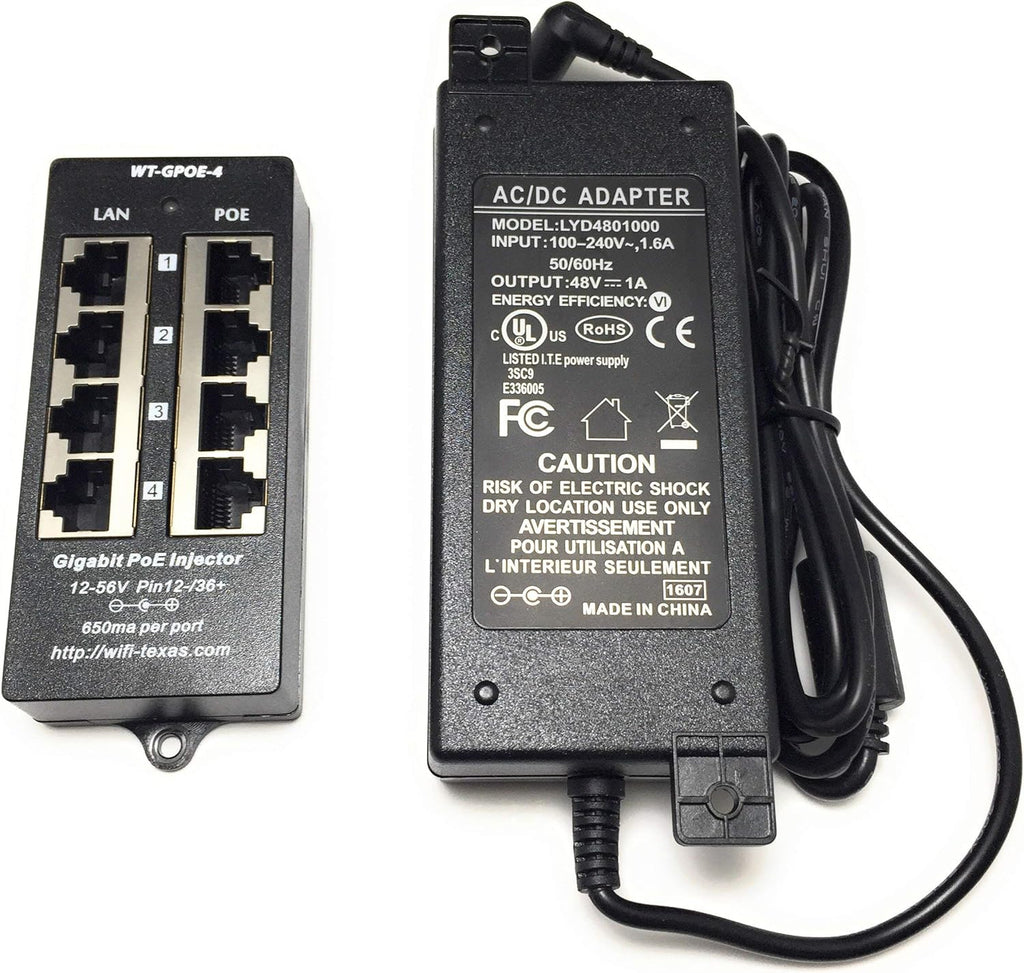

Power supply included 48 volts DC, 1 amp, 48 watts 110 to 220 volt AC operation 90% efficient UL, CE and FCC approved
Applications: IP phones WiFi Access points IP Cameras IEEE 802.3af Devices Devices labeled "12 volt, POE" (please see our video on this topic) To power PoE Texas' USB, 5v and 12v PoE splitters
Other products from PoE Texas AT-4-56v120w - 4-port active injector for 802.3at GPOE-8A-48v60w - 8-Port version with 60 watts of available power AT-8-56v120w - 8-Port version with Active negotiation for 802.3at POE-8-48v60w - 8-Port passive injector with 10/100 Mbps data rate GPOES-8-7AB-48v60w - 8-Port with integrated switch POE-Tester-GEN2 - Handheld voltmeter to display power used by a device GAF-5v10w and GAF-12v12w PoE splitters for 5 volt and 12 volt non-PoE devices
